1. Single Side Air Inlet

2. Sound Sensitive Alternatives

4. Low Profile Models Available

5. High Temperature Applications

Installation and Application Flexibility

• - Centrifugal fans can overcome the static pressure imposed by external duct work, allowing the Series V to be installed indoors.

• - Motors and drives of low profile units are adjacent to the casing section for use in height sensitive installations. Low profile models are available in capacities from 16 to 272 nominal tons, which correspond to heights of 5′ 1-1/4” and 8′ 1-13/16”, respectively. Standard models are available in capacities from 12 to 1335 nominal tons.
• - A range of construction options are available to accommodate entering water temperatures of up to 170oF.
•

Low Sound

• - Centrifugal fans have inherently low sound characteristics.
• - Sound-sensitive areas can be accommodated by facing the quiet blank-off panel to the sound-sensitive direction.
• - For extremely sound sensitive applications, factory designed tested/rated sound attenuation is available for both the air intake and discharge.
•

Low Energy Consumption

• - Minimizes the energy consumption of the entire system because it provides lower condensing water temperatures. Owners save money while conserving natural resources and reducing environmental impact.
• - Standard Invert duty motors.
•

Low Installed Cost

• - All models mount directly on two parallel I-beams and ship complete with motors and drives factory-installed and aligned.
• - Large models ship in multiple sections to minimize the size and weight of the heaviest lift, allowing for the use of smaller, less costly cranes.
•

• Easy Maintenance
• The interior of the unit is easily accessible for adjusting the float valve, cleaning the strainer or flushing the basin.

• The Water Level Control is Easily Reached from the Access Door
•

Reliable Year-Round Operation

• The fans, motor, and drive system are located outside of the moist discharge airstream, protecting them from moisture, condensation and icing. These units are suitable for year-round operation.

• ?External V-Belt Drive System (Shown Here with Panel Removed)
•

Long Service Life

• Various materials are available to meet the corrosion resistance, unit operating life, and budgetary requirements of any project

Construction Options

• - Standard Construction:?Steel panels and structural elements are constructed of heavy-gauge hot-dip galvanized steel.
• - Optional Stainless Steel Construction:?A variety of Stainless Steel options are available to meet your needs.
•

Fan Drive System

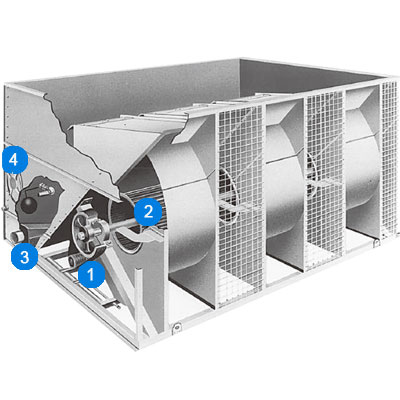

The fan drive system provides the cooling air necessary to reject unwanted heat from the system to the atmosphere. Dynamically balanced, forwardly curved, centrifugal fans driven by matched V-belts with taper lock sheaves designed for not less than 150% of the motor nameplate horsepower are standard on the Series V.

-?High Solidity Axial Fans

Adding a high solidity fan decreases sound levels by decreasing fan?speed, which proportionally decreases sound levels.?BAC offers three?fan options for reduced sound pressure levels.

a.?Standard Fan

b.?Low Sound Fan

c.?Whisper Quiet Fan

• -?BALTIGUARD? Fan System

• The BALTIGUARD? Fan System consists of two standard single-speed fan motors and drive assemblies. One drive assembly is sized for full speed and load, and the other is sized for approximately 2/3 speed and consumes only 1/3 the design horsepower. This configuration allows the reserve capacity of a standby motor in the event of failure. As a minimum, approximately 70% capacity will be available from the low horsepower motor, even on a design wet-bulb day. Controls and wiring are the same as those required for a two-speed, two-winding motor. On some units the standby fan motor can be increased to the size of the main motor for 100% redundancy.

•
• Low Sound Alternatives
• The low sound levels generated by Series V Cooling Towers make them suitable for most installations. For situations when one direction is particularly sound-sensitive, the unit can be oriented so that the side opposite the air inlet faces the sound-sensitive direction. The Series V is also available with factory designed, tested, and rated sound attenuation for both the air intake and discharge.
